QueenCore’s Titanium Honeycomb Panels redefine lightweight structural excellence with unmatched fire resistance, environmental sustainability, and extreme durability. Engineered for high-performance applications in construction, defense, aerospace, and transportation, our panels combine titanium’s innate strength with an advanced honeycomb core design, delivering superior strength-to-weight ratios, thermal stability, and corrosion resistance.
Premium Materials
- Face Sheets: High-grade titanium alloy (Ti-6Al-4V or custom grades) for maximum tensile strength and fatigue resistance.
- Core: Ultra-lightweight titanium honeycomb core, precision-welded for uniform load distribution.
- Adhesives: Aerospace-certified fireproof binders (meeting ASTM E84 Class A) for zero toxic emissions.
- Surface Treatment: Optional anti-corrosion coatings (e.g., ceramic or PVDF) for harsh environments.
Technical Parameters
| Property | Specification |
|---|---|
| Density | 1.2–1.8 g/cm³ (30–50% lighter than steel) |
| Thickness Range | 5mm–100mm (customizable) |
| Compression Strength | 15–50 MPa (core-dependent) |
| Fire Resistance | Up to 1200°C (ASTM E119 compliant) |
| Thermal Conductivity | 0.5–1.2 W/m·K (excellent insulation) |
| Environmental Standard | RoHS/REACH compliant, 100% recyclable |
Manufacturing Process
- Material Prep: Titanium sheets are laser-cut to precision dimensions.
- Honeycomb Formation: Core layers are expanded into hexagonal cells via diffusion bonding.
- Adhesive Bonding: Face sheets are laminated to the core using high-temperature epoxy/phenolic resins.
- Curing & QC: Panels undergo autoclave curing and ultrasonic testing for defects.
- Finishing: Machining, coating, or perforation (as per client specs).
Applications
- Construction: Fireproof cladding, blast-resistant facades, and modular eco-buildings.
- Defense: Armored vehicle plating, radar-evading military shelters.
- Transport: High-speed train interiors, marine bulkheads, EV battery shields.
- Aerospace: Satellite housings, UAV components, and aircraft flooring.
Installation Guidelines
QueenCore’s panels are designed for seamless integration:
- Modular Design: Pre-drilled holes or interlocking edges for rapid assembly.
- Mounting: Compatible with rivets, adhesives (e.g., epoxy), or mechanical fasteners.
- Safety: Wear PPE during cutting (use carbide tools; no plasma torches).
- Custom Support: Our engineers provide CAD-based installation templates.
Frequently Asked Questions (FAQ) – Titanium Honeycomb Panels
1. What are the key advantages of titanium honeycomb panels over traditional materials?
- Answer: QueenCore’s titanium honeycomb panels offer 40-50% weight reduction vs. steel, fireproofing (up to 1200°C), and corrosion resistance—ideal for aerospace, defense, and sustainable construction.
2. Are these panels environmentally friendly?
- Answer: Yes! Our panels are 100% recyclable, RoHS/REACH compliant, and use low-VOC adhesives—making them a green alternative to aluminum or composite panels.
3. How do titanium honeycomb panels perform in extreme temperatures?
- Answer: They excel in thermal stability (–200°C to +600°C) and meet ASTM E119 fire ratings, perfect for blast-resistant buildings or spacecraft.
4. Can I customize the size and thickness?

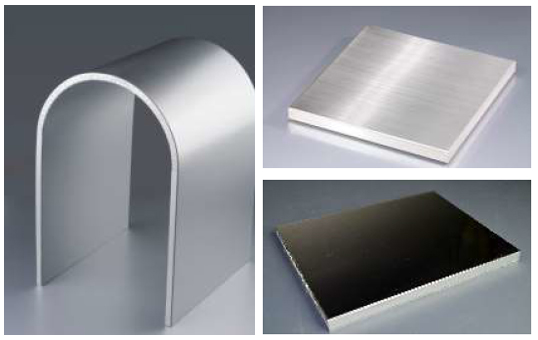

- Answer: Absolutely. We provide 5mm–100mm thicknesses and tailor dimensions/shapes (e.g., curved panels for aerospace).
5. What industries use titanium honeycomb panels most?
- Answer: Top applications:
- Defense: Armored vehicles, military shelters.
- Construction: Fireproof facades, modular housing.
- Transport: EV battery shields, marine bulkheads.
6. How do you install these panels? Do they require special tools?
- Answer: Install via rivets, epoxy adhesives, or bolts (we provide templates). Use carbide blades for cutting—avoid plasma torches.
7. Are they more expensive than aluminum honeycomb panels?
- Answer: Initially, yes—but long-term cost-saving due to titanium’s durability, zero maintenance, and lifecycle efficiency.
8. Do you offer anti-corrosion coatings?
- Answer: Yes! Optional ceramic/PVDF coatings for saltwater/marine use or chemical-heavy environments.
9. Can these panels reduce noise?
- Answer: The honeycomb structure dampens sound effectively (STC 45+), ideal for aircraft interiors or soundproof walls.
10. How do I request a quote or technical support?
- Answer: Contact our team via [email/contact form] for custom quotes, CAD files, or testing data. Response within 24h!
